Sophos XGS 4300 appliance

8.662,28

Shopping Cart

No products in the cart.

CPU x86 AMD CPU x86 AMD CPU x86 AMD CPU x86 AMD CPU
CPU (Memory) 32 GB (2666) DDR4 ECC 32 GB (2666) DDR4 ECC 64 GB DDR4 ECC 2666 80 GB DDR4 ECC 2666
NPU (Core/Threads) Marvell NPU Marvell NPU Marvell NPU (24) Marvell NPU (24)
NPU (Clock Frequency) - - 2.2 GHz 2.4 GHz
NPU (Memory) 8 GB DDR4 ECC 8 GB DDR4 ECC 12 GB DDR4 ECC 12 GB DDR4 ECC
Firewall Throughput 75 000 MBit/s 80 000 MBit/s 100 000 MBit/s 115 000 MBit/s
Firewall IMIX 33 000 MBit/s 37 000 MBit/s 52 000 MBit/s 60 000 MBit/s
Latency (64 byte UDP) 3 μs 4 μs 5 μs 5 μs
IPS Throughput 25 000 MBit/s 35 690 MBit/s 40 000 MBit/s 48 000 MBit/s
Throughput Threat Protection 4 800 MBit/s 8 390 MBit/s 12 390 MBit/s 17 050 MBit/s
Simultaneous connections 16 600 000 17 200 000 32 400 000 39 900 000
New connections/sec 368 000 450 000 468 000 496 000
IPsec VPN throughput 9800 MBit/s 16000 MBit/s 21600 MBit/s 26000 MBit/s
Xstream SSL/TLS Inspection 8 000 MBit/s 10 600 MBit/s 13 500 MBit/s 16 000 MBit/s
Concurrent connections XStream SSL/TLS 276 480 276 480 512 000 768 000
Storage (local quarantine/logs) 1 x SATA-III SSD, min. 240 GB 2 x SATA-III SSD (SW RAID-1), min. 240 GB 2 x SATA-III SSD, min. 480 GB HW RAID integrated in CPU 2 x SATA-III SSD, min. 480 GB HW RAID integrated in CPU
Ethernet interfaces (fixed) 4 GbE copper, 4-port 2.5 GbE copper, 4 x SFP+ 10 GbE fiber 4 GbE copper, 4-port 2.5 GbE copper, 4 x SFP+ 10 GbE fiber 4 GbE copper, 4 x SFP+ 10 GbE fiber 8 GbE copper, 12 x SFP+ 10 GbE fiber
Bypass Port Pairs 2 2 2 2
Administrative ports 1 x RJ45 MGMT, 1 x COM (RJ45), 1 x Micro-USB (cable incl.) 1 x RJ45 MGMT, 1 x COM (RJ45), 1 x Micro-USB (cable incl.) 1 x RJ45 MGMT, 1 x COM (RJ45), 1 x Micro-USB (cable incl.) 1 x RJ45 MGMT, 1 x COM (RJ45), 1 x Micro-USB (cable incl.)
Other I/O ports 2 x USB 3.0 (front), 1 x USB 2.0 (rear) 2 x USB 3.0 (front), 1 x USB 2.0 (rear) 2 x USB 3.0 (front), 1 x USB 2.0 (rear) 2 x USB 3.0 (front), 1 x USB 2.0 (rear)
Number of FleXi port slots 2 2 2 + 1 for high density module 2 + 1 for high density module
FleXi port modules (optional) 8-port GbE copper, 8-port GbE SFP fiber, 4-port 10 GE SFP+ fiber, 4-port GbE copper bypass (2 pairs), 4-port GbE copper PoE +, 4-port GbE copper, 4-port 2.5 GbE copper PoE 8-port GbE copper, 8-port GbE SFP fiber, 4-port 10 GE SFP+ fiber, 4-port GbE copper bypass (2 pairs), 4-port GbE copper PoE +, 4-port GbE copper, 4-port 2.5 GbE copper PoE 8-port GbE copper, 8-port GbE SFP fiber, 4-port 10 GbE SFP+ fiber, 4-port GbE copper bypass (2 pairs), 2-port 40 GbE QSFP+ fiber, 8-port 10 GbE SFP+ fiber High Density Module (NIC): 12-port GE copper + 4-port 2.5 GE copper 8-port GbE copper, 8-port GbE SFP fiber, 4-port 10 GbE SFP+ fiber, 4-port GbE copper bypass (2 pairs), 2-port 40 GbE QSFP+ fiber, 8-port 10 GbE SFP+ fiber High Density Module (NIC): 12-port GE copper + 4-port 2.5 GE copper
Max. Max. Total port density (incl. use of modules) 28 28 48 48
Max. Max. Power-over-Ethernet (with Flexi-Port module) 2 modules: 4 ports, each max. 60 W 2 modules: 4 ports, each max. 60 W - -
Connection modules (optional) SFP DSL module (VDSL2), SFP/SFP+ transceiver SFP DSL module (VDSL2), SFP/SFP+ transceiver SFP DSL module (VDSL2), SFP/SFP+ transceiver SFP DSL module (VDSL2) SFP/SFP+ transceiver
Display Multifunction LCD module Multifunction LCD module Multifunction LCD module Multifunction LCD module
Assembly 1U rack mountable (slide rails included) 1U rack mountable (slide rails included) 2U slide rails (included in delivery) 2U slide rails (included in delivery)
Dimensions width x depth x height 438 x 44 x 510 mm 438 x 44 x 510 mm 438 x 88 x 660 mm 438 x 88 x 660 mm
Weight 8.7 kg (without packaging), 14.9 kg (with packaging) 9.7 kg (without packaging), 15.9 kg (with packaging) 17.8 kg (without packaging), 27 kg (with packaging) 17.8 kg (without packaging), 27 kg (with packaging)
Power supply Internal, automatic range adjustment DC 100-240 VAC, 3.7-7.4 A@50-60 Hz Option for external redundant power supply Internal, hot-swappable, automatic range adjustment range adjustment DC 100- 240 VAC, 3.7-7.4 A@50-60 Hz Option for internal redundant power supply 2 x hot-swap power supply, internal, automatic range adjustment 100-240 VAC, 50-60 Hz 2 x hot-swap power supply, internal, automatic range adjustment 100-240 VAC, 50-60 Hz
Power consumption 131 W/447.43 BTU/h (idle), 268.35 W/916.56 BTU/h (full load) 151 W/515.74 BTU/h (idle), 268.35 W/916.56 BTU/h (full load) 168.0 W/573.81 BTU/h (idle), 478.01 W/1117.43 BTU/h (full load) 188.00 W/642.13 BTU/h (idle), 497.09 W/1697.8 BTU/h (full load)
Incl. Use of PoE 152 W/519 BTU/h 152 W/519 BTU/h - -
Operating temperature 0 °C to 40 °C (operation) -20 °C to +70 °C (storage) 0 °C to 40 °C (operation) -20 °C to +70 °C (storage) 0 °C to 40 °C (operation) -20 °C to +70 °C (storage) 0 °C to 40 °C (operation) -20 °C to +70 °C (storage)
Humidity 10% to 90%, non-condensing 10% to 90%, non-condensing 10% to 90%, non-condensing 10% to 90%, non-condensing
Certifications CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI

Sophos XGS 4300 appliance

8.662,28

Vibrant Spring

50%70%50%50%50%50%50%50%50% Off

Promo Code

defensedeal_xgs4300sunnydays_xgs4300springtime_xgs4300springtime_xgs4300springtime_xgs4300springtime_xgs4300springtime_xgs4300springtime_xgs4300springtime_xgs4300

* Get the discount on the XGS 4300 Firewall when you purchase it together with a 1-year subscription of Standard, Xstream or Epic Protection.

Lizenzierung

Delivery

Free shipping over 200 €
Delivery time
1-2 Workdays
2-6 Workdays
2-6 Workdays
2-6 Workdays
2-6 Workdays
2-6 Workdays
2-6 Workdays
2-6 Workdays
2-6 Workdays
Availability
17in stock
31in stock
31in stock
31in stock
31in stock
31in stock
31in stock
31in stock
31in stock
Deliver to
SKU: XG4CTCHEUK

Description

Learn more about the
Sophos XGS 4300 appliance

The XGS 4300 belongs to the 1U variant of the XGS series. It has integrated and modular connectivity options to meet the diverse needs of larger network environments. The devices in this range are perfect for distributed offices, multiple branch offices and retail stores.

The entire XGS series offers increased efficiency and performance. With the dedicated Xstream processor, data recognition is increased. In addition, the built-in and additional connection options facilitate subsequent adjustments to the infrastructure. The XGS 4300 is equipped with TLS Inspection, Deep Packet Inspection and Application Acceleration to give you a powerful "See it. Stop it. Secure it" protection.

Scope of delivery

What is included in the scope of delivery?

Hardware

Sophos XGS 4300

Sophos XGS 4300 Firewall
(1U rack mount chassis)

Documents

Sophos Quick Start Guide XGS 4300/4500 Thumbnail

Quick guide

Sophos Safety Instructions and Regulatory Compliance Thumbnail

Safety instructions

Accessories

Sophos Firewall 2 Rack Mount Brackets Thumbnail

2 rack mount brackets

Sophos Firewall 2 Rack Mount Rails Thumbnail

2 rack mount rails

Micro USB, RJ45 Ethernet, Power Cable Thumbnail

Micro USB cable
RJ45 Ethernet cable
Power cable

Licenses

Sophos Base License Box

Sophos base license

Technical specifications

Sophos XGS 4300 Series

The Sophos XGS 4300 is particularly suitable for medium-sized businesses that need a powerful, flexible solution to operate and protect their network.


Connections and extensions

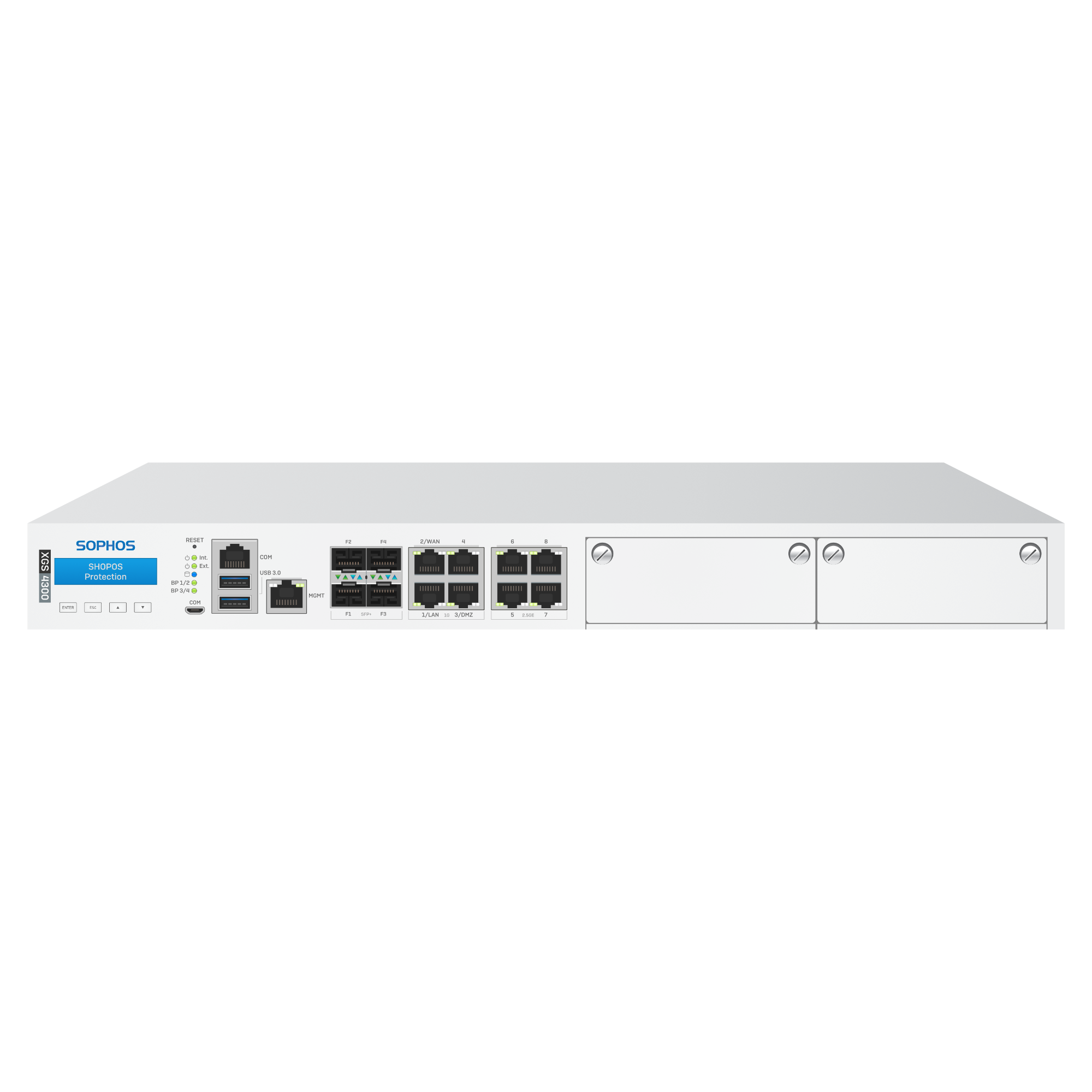

Front

XGS 4300 front with designations of the connection options

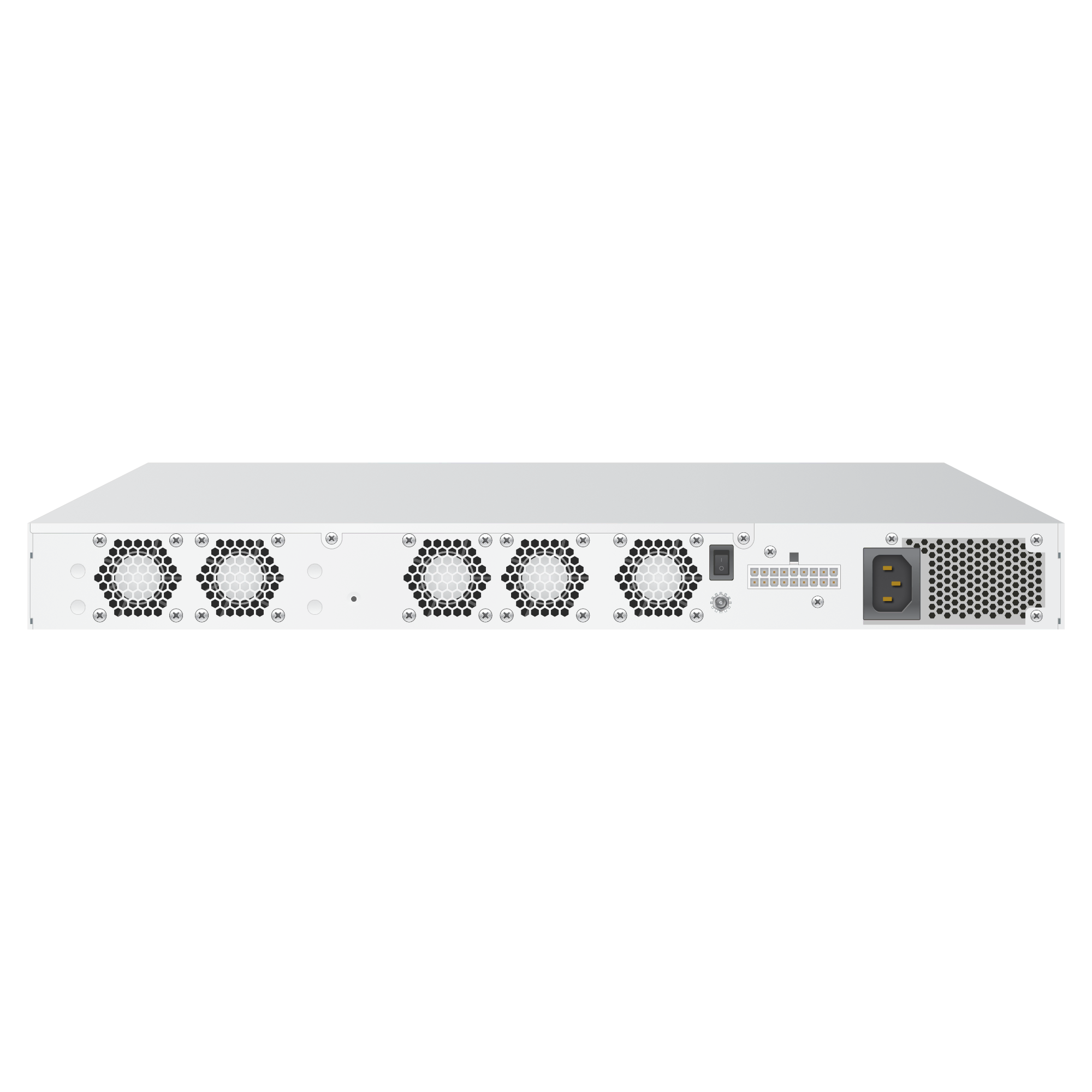

Back

XGS 4300 rear panel with designations of the connection options

Dimensions and weight

HEIGHT
4.4 cm

WIDTH
43.8 cm

DEEP
51.0 cm

WEIGHT
8.7 kg/19.18 lbs (unpacked)
14.9 kg/32.85 lbs (packed)

Sophos XGS 4300 Dimensions

Manufacturer warranty and service

1 year warranty
With the purchase of this Sophos Firewall you get 1 year warranty as standard. The term "Warranty" means Avanet's warranty and Sophos's manufacturer 's warranty. With an active Enhanced Support license, the warranty period can be extended up to 5 years.

3 SFOS updates included
When purchasing Sophos Firewall without a license bundle, three SFOS firmware updates are included. To keep your Sophos Firewall up to date, an active Enhanced Support license is required. This can either be purchased separately with the firewall, or you can purchase the Sophos Firewall together with a license bundle that includes Enhanced Support.

90 days manufacturer support
If Sophos Firewall is purchased without Enhanced Support or a license bundle, vendor support is limited to 90 days.


Included functions

Basic license
The base license is included free with every Sophos Firewall and includes Xstream architecture, networking, wireless, SD-WAN, VPN and reporting. Read our detailed knowledge base article about the base license to find out if the free features are enough for you.

Central Management
Link your firewall to Central, Sophos' advanced cloud-based platform. Enjoy convenient features like fast alerts, backup management, one-click firmware updates, and smooth deployment of new firewalls. Dive into the exciting world of Sophos Central and experience efficient management of your security solutions!

Central Reporting
Enjoy free Central Reporting with up to 7 days of report data storage. You get access to robust reporting tools that let you visually map your network, Internet, and application activity and security over time.

Compare 1U Firewalls

Performance

FIREWALL
75,000 Mbps

TLS INSPECTION
8,000 Mbps

FIREWALL IMIX
33,000 Mbps

IPS
29,500 Mbps

IPSEC VPN
62,500 Mbps

NGFW
23,000 Mbps

THREAT
PROTECTION

6,500 Mbps

LATENCY
(64 BYTE UDP)

3 µs

CONCURRENT CONNECTIONS
16.600.000

NEW CONNECTIONS/SEC
368.000

CONCURRENT
IPSEC-VPN-TUNNELS
8.500

CONCURRENT
SSL VPN TUNNEL
7.500

XSTREAM SSL/TLS INSPECTION
8,000 Mbps

CONCURRENT CONNECTIONS
XSTREAM SSL/TLS
276.480

Understanding Sophos Firewall performance data correctly

Connectivity

MEMORY (LOCAL QUARANTINE/LOGS)
Integrated SATA-III SSD, min. 240 GB

ETHERNET INTERFACES (FIXED)
4 x GbE copper
4 x 2.5 GbE copper
4 x SFP+ 10 GbE fiber

BYPASS PORT PAIRS (FIXED)
2

MANAGEMENT INTERFACES
1 x RJ45 MGMT
1 x COM RJ45
1 x COM Micro-USB (cable incl.)

OTHER I/O INTERFACES
2 x USB 3.0 (front)

Modularity

Operating conditions

POWER SUPPLY
Internal auto-ranging AC-DC 100-240VAC, 3.7-7.4A@50-60 Hz External Redundant PSU Option

POWER CONSUMPTION
131 W/447.43 BTU/hr (idle)
268.35 W/916.56 BTU/hr (max.)

POE ADDITION ENABLED
152 W/519 BTU/h

OPERATING TEMPERATURE
0°C to 40°C (operating)
-20°C to +70°C (storage)

HUMIDITY
10% to 90%, non-condensing

Product Certifications

CERTIFICATIONS
CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI

Licensing

Extend the range of functionality of the XGS 4300

To increase the protection capabilities, you can also purchase the Sophos Firewall together with a license package. The following options are available:

Included free of charge

Extend range of features

Base license

Each Sophos XGS Firewall Appliance purchased individually includes the free base license, which provides basic security features:

1 year warranty

3 SFOS updates included

90 days manufacturer support

Xstream Architecture

Networking

Wireless

SD-WAN

VPN and reporting

Sophos Base License Box

Base license

Xstream Architecture, Networking, Wireless, SD-WAN, VPN and Reporting.

Highly recommended buy for Enhanced Support

There are situations where a Sophos Firewall with the minimum features of the base license is sufficient, and no additional modules are needed. Nevertheless, we recommend in any case the “Enhanced Support License” as an absolute minimum to benefit from unlimited software updates, round-the-clock support by Sophos and a warranty extension of up to 5 years.

Sophos Firewall - Enhanced Support License Box

Enhanced Support

24/7 support, feature updates, advance hardware replacement warranty during the term.

The link below will take you directly to the Standard Protection product page, and you can learn more about the features it includes.

Sophos Firewall - Standard Protection License Bundle Box

Standard Protection for XGS 4300

Network Protection, Web Protection, Enhanced Support

The link below will take you directly to the Xstream Protection product page to learn more about the features it includes.

Sophos Firewall - Xstream Protection License Bundle Box

Xstream Protection for XGS 4300

Network Protection, Web Protection, Zero-Day Protection, Central Orchestration, Enhanced Support

The link below will take you directly to the Epic Protection product page, and you can learn more about the features it includes.

Sophos Firewall - Epic Protection Lizenz Bundle Box

Epic Protection for XGS 4300

Network Protection Protection, Web Protection, Zero-Day Protection Protection, Central Orchestration, Email Protection, Web Server Protection, Enhanced Support

Sizing Guide

Which firewall is right for you?

There are several factors to consider when choosing the right firewall model. It is important to make sure which firewall meets your requirement profile and offers sufficient performance and throughput before you buy. To ensure resilience, we would also advise using an HA cluster.

On this product page, we have gathered all the important data about XGS 4300 Firewall that will help you make a decision.

Sophos XGS 4300 Firewall Performance

Avanet Services

Let us improve your safety

Our services are designed to help you keep your Sophos products running securely and reliably. In addition to the classic support for Sophos Firewalls or the Central platform, we offer the following services, which can be requested from us at any time:

Setup Services

Health Check

Upgrades

Workshops

Migrations

Firewall maintenance

SLA

Security audits

Request more information

Setup Services

Want to have your Sophos products set up by professionals? We support you during commissioning and configuration for smooth operation.

Migrations

You would like to change from your SG Firewall (UTM) to a XGS Firewall with the SFOS operating system? Thanks to our experience, we can also manage your changeover without any worries.

Health Check

You have set up your Sophos products yourself and would like us to check the configuration? We will check your settings and give our recommendation.

Workshops

Is it your job to be knowledgeable about Sophos products in your organization? We offer targeted training that is completely tailored to your needs.

EDUCATION & GOVERNMENT

Special awards for educational and government institutions

Sophos offers special discounts for schools and government institutions to meet specific budget requirements. A discount of at least 20 % can be expected.*

Ask us and we will prepare an offer for you completely free of charge and without obligation.

* Special pricing for educational and government institutions is only available in the DACH region.

Request special prices

Trial version

Try Sophos Firewall free

Familiarize yourself with the Sophos Firewall user interface before purchasing. See for yourself how intuitive this advanced operating system is and learn about all the features of Sophos Firewall.

Use the online demo for instant access directly in the browser, without installation. Or download the Sophos Firewall software for free (ISO) and install it on your own hardware.

Use the following credentials to start your online demo. Username: demo / Password: XG@dem0user

Accessories

Often bought together

Help with purchase

Are there any questions about the product?

It is better to ask again before buying, before you end up holding the wrong product in your hands.

Ask question
Weight 15 kg
Dimensions 69 × 58 × 18 cm
Sophos XGS 4300 appliance

8.662,28
