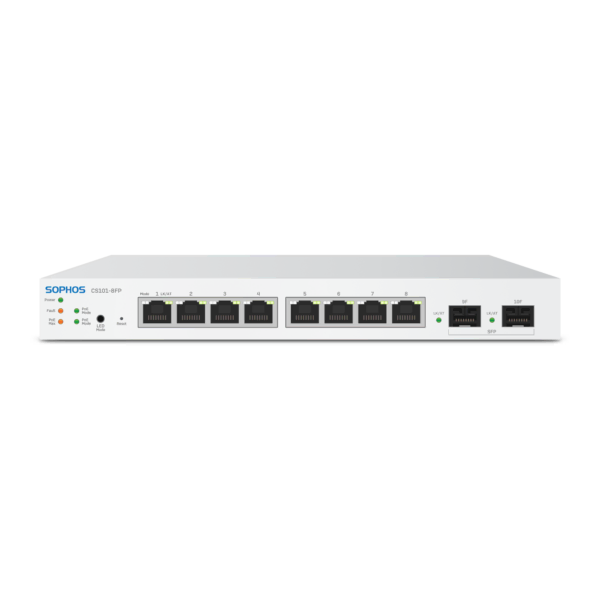

Sophos Switch CS101-8FP – 8 port with Full PoE

The new Sophos switches are the perfect solution for connecting devices on your network or powering them via PoE. With port security and VLAN segmentation, you can control access to your network and add Quality of Service for a smooth, reliable experience. Sophos Central makes it easy to manage your switches, and they can be centrally managed in one console along with your other Sophos security solutions.

The Sophos CS101-8FP switch has 8 ports of 1 Gbps throughput. All 8 ports are PoE capable.

Multiple ways to manage your Sophos switch

Managing the Sophos Switch CS101-8FP is easy with Sophos. You can configure either locally via the web interface or the CLI (command line). With an additional support and services license, the CS101-8FP switch can even be integrated and configured via Sophos Central.

Easy setup and deployment

Sophos switches make setup and deployment a breeze. Simply enter your serial number in Sophos Central and click "Register" to start the process - in minutes your switch will be up and running!

Connectivity that many companies need

Sophos' switches are the ideal solution for many organizations of all sizes, from remote and home offices to small and medium businesses and branch offices. Add switches to extend your SD Branch deployments by leveraging Sophos' full range of Secure Access products for LAN and Service Edge access.

One provider for your entire network package

Supporting different vendors can be difficult, for example, when it comes to applying new updates or installing new versions. This often requires coordination between multiple parties, which can be tedious. With the new switches, the only vendor you need in your network stack is Sophos. Seamless integration with your existing Sophos infrastructure makes single-vendor deployment a reality across many networks around the world.

Technical Specifications

Compare the technical specifications of the Sophos CS101-8 to CS210-8FP switch in the table below. Not sure which switch is right for you? We advise you free of charge and completely without obligation.

	CS101-8 About the product	CS101-8FP About the product	CS210-8FP About the product
Form factor	Desktop	Desktop	1U
Assembly	Wall mounting (incl. screws)	Wall mounting (incl. screws)	Rackmount
Switching capacity (Gbit/s)	20	20	120
MAC address table	8K	8K	8K
Working memory	256 MB	256 MB	512 MB
Packet Buffer Memory	512 KB	512 KB	512 KB
VLANs	Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs)	Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs)	Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs)
10/100/1000Base-T	8	8	-
100/1000Base-T/2500Base-T	-	-	8
SFP 1G	2	2	-
SFP+ 1G/10G	-	-	4
Other interfaces	DC input, on/off switch	DC input, on/off switch	Console connector, AC power jack
PoE power balance	-	110W	240W
PoE-capable ports	-	1 to 8	1 to 8
Supported PoE standard	-	802.3af/802.3at	802.3af/802.3at/802.3bt
Max. PoE devices	-	7 (15.4W) / 3 (30W)	8 (15.4W)/8 (30W)/4 (60W)
Power supply	12W	150W	300W
Power supply type	External DC adapter	External AC/DC adapter	Internal power supply unit (PSU)
Power supply AC input	100-240VAC 50-60Hz 0.3A max	100-240 VAC, 50/60Hz, 2.0A	100-240VAC, 50/60Hz, 4A
Power supply	+12V 1.0A 12W	150W 54V/2.78A	12V/5.83A;-54V/4.63A
Efficiency of the mains adapter	100VAC / 0.13A (80.45%) 240VAC / 0.08A (81.66%)	100VAC / 1.48A (94.5%) 240VAC / 0.64A (95.9%)	100VAC / 2.99A (84.84%) 240VAC / 1.20A (88.08%)
Power consumption	3.76W / 12.82 BTU/hr (idle) 6.96W / 23.733 BTU/hr (full load)	4.86W / 16.57 BTU/hr (idle) 147.1W / 501.6 BTU/hr (full load)	31.2W / 106.392BTU/hr (idle) 299W / 1019.59BTU/hr (full load)
Dimensions width x depth x height	105mm x 240mm x 27mm	105mm x 240mm x 27mm	230mm x 330mm x 44mm
Weight	0.636 kg (without packaging) 0.99 kg (with packaging)	0.636 kg (without packaging) 1.45 kg (with packaging)	2.34 kg (without packaging) 3.11 kg (with packaging)
Fan	Fanless	Fanless	2 x Intelligent fan
Operating temperature	0-40°C (operation), -20-70°C (storage)	0-40°C (operation), -20-70°C (storage)	0-40°C (operation), -20-70°C (storage)
Humidity	10-90% (operation), 5-90% (storage), non-condensing	10-90% (operation), 5-90% (storage), non-condensing	10-90% (operation), 5-90% (storage), non-condensing
Certifications	CB, UL, CE, FCC, ISED, RCM, VCCI, BSMI, NOM / Post GA: Anatel, KC	CB, UL, CE, FCC, ISED, RCM, VCCI, BSMI, NOM / Post GA: Anatel, KC	CB, UL, CE, FCC, ISED, RCM, VCCI, BSMI, NOM / Post GA: Anatel, KC
