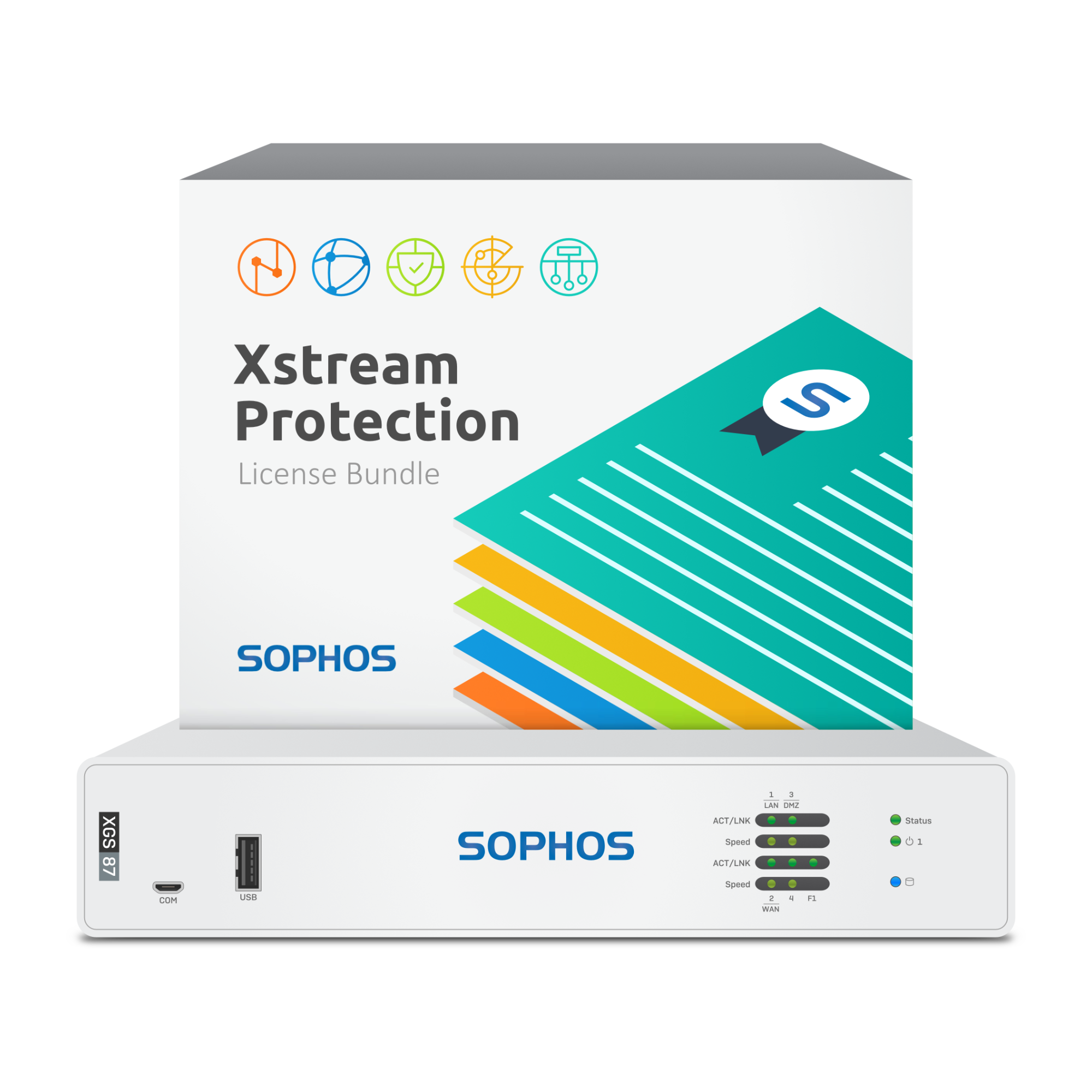

Sophos XGS 87w with Xstream Protection

Xstream Protection - The popular modules combined in one bundle for one low price.

The following modules are included:

• Network Protection
• Web Protection
• Enhanced Support
• Zero-Day Protection
• Central Orchestration

Technical Specifications

Compare the specifications of Sophos XGS 87 up to 136 in the following table. Not sure which firewall is right for you? We advise you free of charge and completely without obligation.

	XGS 87 About the product	XGS 107 About the product	XGS 116 About the product	XGS 126 About the product	XGS 136 About the product
CPU (Core/Threads)	x86 AMD CPU	x86 AMD CPU	x86 AMD CPU	x86 AMD CPU	x86 AMD CPU
CPU (Memory)	4 GB DDR4	4 GB DDR4	4 GB DDR4	6 GB DDR4	8 GB DDR4
NPU (Core/Threads)	Marvell NPU	Marvell NPU	Marvell NPU	Marvell NPU	Marvell NPU
NPU (Memory)	2 GB DDR4	2 GB DDR4	4 GB DDR4	4 GB DDR4	4 GB DDR4
Firewall Throughput	3 700 MBit/s	7 000 MBit/s	7 700 MBit/s	10 500 MBit/s	11 500 MBit/s
Firewall IMIX	2 500 MBit/s	2 900 MBit/s	3 500 MBit/s	4 000 MBit/s	4 700 MBit/s
Latency (64 byte UDP)	6 µs	6 µs	8 μs	8 μs	8 μs
IPS Throughput	1 015 MBit/s	1 355 MBit/s	2 000 MBit/s	2 600 MBit/s	3 300 MBit/s
Throughput Threat Protection	240 MBit/s	330 MBit/s	685 MBit/s	900 MBit/s	1 000 MBit/s
Simultaneous connections	1 600'000	1 600'000	1 600'000	5 000 000	6 400 000
New connections/sec	35 700	44 400	61 500	69 900	74 500
IPsec VPN throughput	750 MBit/s	900 MBit/s	1100 MBit/s	1800 MBit/s	2500 MBit/s
Xstream SSL/TLS Inspection	375 MBit/s	420 MBit/s	650 MBit/s	800 MBit/s	950 MBit/s
Concurrent connections XStream SSL/TLS	8192	8192	8192	12288	18 432
Storage (local quarantine/logs)	16 GB eMMC	Integrated 64 GB SSD	Integrated 64 GB SSD	Integrated 64 GB SSD	Integrated 64 GB SSD
Ethernet interfaces (fixed)	4 GbE copper, 1 x SFP fiber optic	8 GbE copper, 1 x SFP fiber optic	8 GbE copper 1 GbE SFP	12 GbE copper, 2 x SFP fiber optics	10 GbE copper, 2-port 2.5 GbE copper, 2 x SFP fiber
Power over Ethernet (min.)	-	-	1 x GbE 803.2at (max. 30 W)	2 x GbE (max. 30 W per port)	2 x 2.5 GbE (max. 30 W per port)
Administrative ports	1 x COM (RJ45), 1 x Micro-USB (cable incl.)	1 x COM (RJ45), 1 x Micro-USB (cable incl.)	1 x COM (RJ45), 1 x Micro-USB (cable incl.)	1 x COM (RJ45), 1 x Micro-USB (cable incl.)	1 x COM (RJ45), 1 x Micro-USB (cable incl.)
Other I/O ports	1 x USB 2.0 (front), 1 x USB 3.0 (rear)	1 x USB 2.0 (front), 1 x USB 3.0 (rear)	1 x USB 2.0 (front), 1 x USB 3.0 (rear)	1 x USB 2.0 (front), 1 x USB 3.0 (rear)	1 x USB 2.0 (front), 1 x USB 3.0 (rear)
Number of expansion slots	-	-	1	1	1
Connection modules (optional)	SFP DSL module (VDSL2), SFP transceiver	SFP DSL module (VDSL2), SFP transceiver	SFP DSL module (VDSL2), 3G/4G module, SFP transceiver	SFP DSL module (VDSL2), 3G/4G module, SFP transceiver	SFP DSL module (VDSL2), 3G/4G module, SFP transceiver
Assembly	Rack mount kit available (must be ordered separately)	Rack mount kit available (must be ordered separately)	Rack mount kit available (must be ordered separately)	Rack mount kit available (must be ordered separately)	Rack mount kit available (must be ordered separately)
Dimensions width x depth x height	230 x 44 x 205.5 mm	230 x 44 x 205.5 mm	320 x 44 x 213 mm	320 x 44 x 213 mm	320 x 44 x 213 mm
Weight	1.36 kg (without packing) 2.75 kg (with packing)	1.4 kg (without packing), 2.8 kg (with packing)	2.2 kg (without packaging) 4.2 kg (with packaging)	2.4 kg (without packaging) 4.4 kg (with packaging)	2.4 kg (without packaging) 4.4 kg (with packaging)
Power supply	External, automatic range adjustment AC-DC 100-240 VAC, 1.7 A@50-60 Hz 12 VDC, 5 A, 60 W	External, automatic range adjustment AC-DC 100-240 VAC, 1.7 A@50-60 Hz 12 VDC, 5 A, 60 W Optional second redundant power supply Power supply	External, automatic range adjustment AC-DC 100-240 VAC, 2.5 A@50-60 Hz 12 VDC, 12.5 A, 150 W Optional second redundant power supply power supply	External, automatic range adjustment AC-DC 100-240 VAC, 2.5 A@50-60 Hz 12 VDC, 12.5 A, 150 W Optional second redundant power supply power supply	External, automatic range adjustment AC-DC 100-240 VAC, 2.5 A@50-60 Hz 12 VDC, 12.5 A, 150 W Optional second redundant power supply power supply
Power consumption	23.2 W/79.16 BTU/h (87) (idle) 43.4 W/148.09 BTU/h (full load)	26.1 W/89.06 BTU/h (idle), 53.9 W/183.91 BTU/h (full load)	28 W, 96 BTU/h (idle), 57 W/195 BTU/h (full load)	30 W/102 BTU/h (idle), 59 W/202 BTU/h (full load)	30 W/102 BTU/h (idle), 62 W/212 BTU/h (full load)
Incl. Use of PoE	-	-	38 W/130 BTU/h (full load)	76 W/260 BTU/h (full load)	76 W/260 BTU/h (full load)
Operating temperature	0 °C to 40 °C (operation), -20 to +70 °C (storage)	0 °C to 40 °C (operation), -20 to +70 °C (storage)	0 °C to 40 °C (operation), -20 to +70 °C (storage)	0 °C to 40 °C (operation), -20 to +70 °C (storage)	0 °C to 40 °C (operation), -20 to +70 °C (storage)
Humidity	10 % to 90 %, non-condensing	10 % to 90 %, non-condensing	10 % to 90 %, non-condensing	10 % to 90 %, non-condensing	10 % to 90 %, non-condensing
